LIGENTrobot's customized stamping loading and unloading robot solution, leveraging its high precision, adaptability, and safety advantages, provides a new path for the automation upgrade of the metal processing industry. With its core strength in "Made in China," it drives the transformation of traditional stamping production towards intelligent and unmanned operation, injecting strong momentum into the high-quality development of the manufacturing industry.

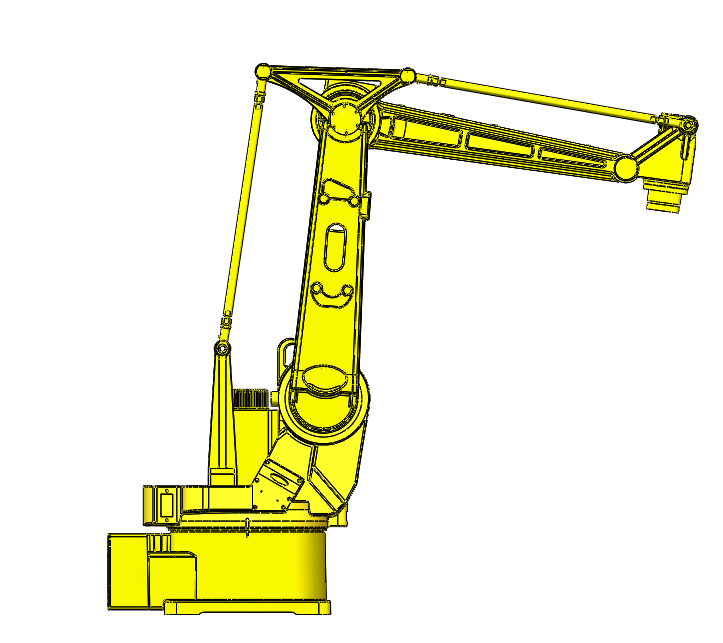

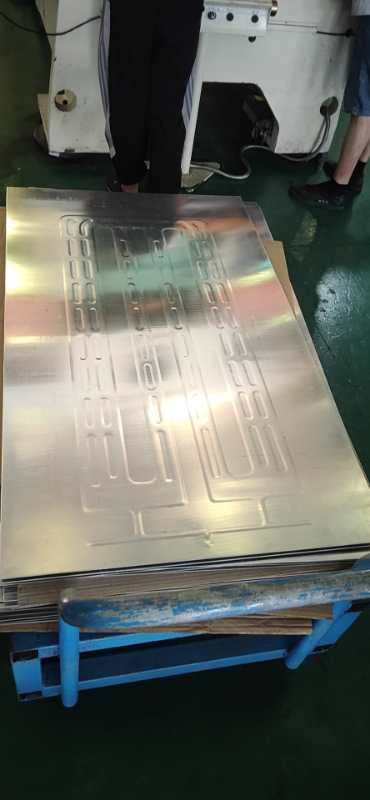

This newly launched stamping loading and unloading solution is tailored to the stamping production needs of 6061 aluminum alloy sheets (1380mm long, 700mm wide, 5kg). It constructs a fully automated operation system from raw material loading, precise positioning, and stamping to finished product stacking and scrap separation. The solution uses a core configuration of two industrial robots paired with two sets of dedicated grippers, along with a customized positioning platform. Through a dual positioning mode of robot initial positioning + precise positioning using cylinders and positioning blocks, combined with an adjustable slot design for the positioning blocks, it achieves flexible adaptation to different workpiece specifications, ensuring the accuracy of robot loading and guaranteeing stamping quality from the source.

In selecting core equipment and components, LIGENTrobot adheres to the principles of high quality and high reliability. Core components such as servo motors, harmonic reducers, and bearings are sourced from internationally renowned brands. Supporting components such as air supply systems, electrical components, and sensors are selected from high-quality industry products. All wires and cables meet national standards. Furthermore, the system incorporates a self-developed electrical signal I/O box, enabling seamless collaboration between various devices and ensuring long-term stable operation of the production line. Specifically designed for the characteristics of stamping production processes, the solution features a dual-set suction cup fixture, enabling separate gripping and independent control of scrap and finished materials, effectively improving material separation efficiency and optimizing the production process.

To ensure the safe and efficient operation of the production line, the solution incorporates multiple safety protections and error-proofing designs. It not only strictly follows national mechanical safety standards, incorporating emergency stop and anti-accidental start safety devices, but also provides error-proofing measures for loading and unloading. In automatic mode, the robot arm is prohibited from operating without material, and it is interlocked with the punch press. It is also recommended to use a dual-insurance detection system with a material sheet detection sensor and a robot vacuum pressure sensor to effectively prevent defective products and mold damage caused by stamping without material, significantly improving production yield.

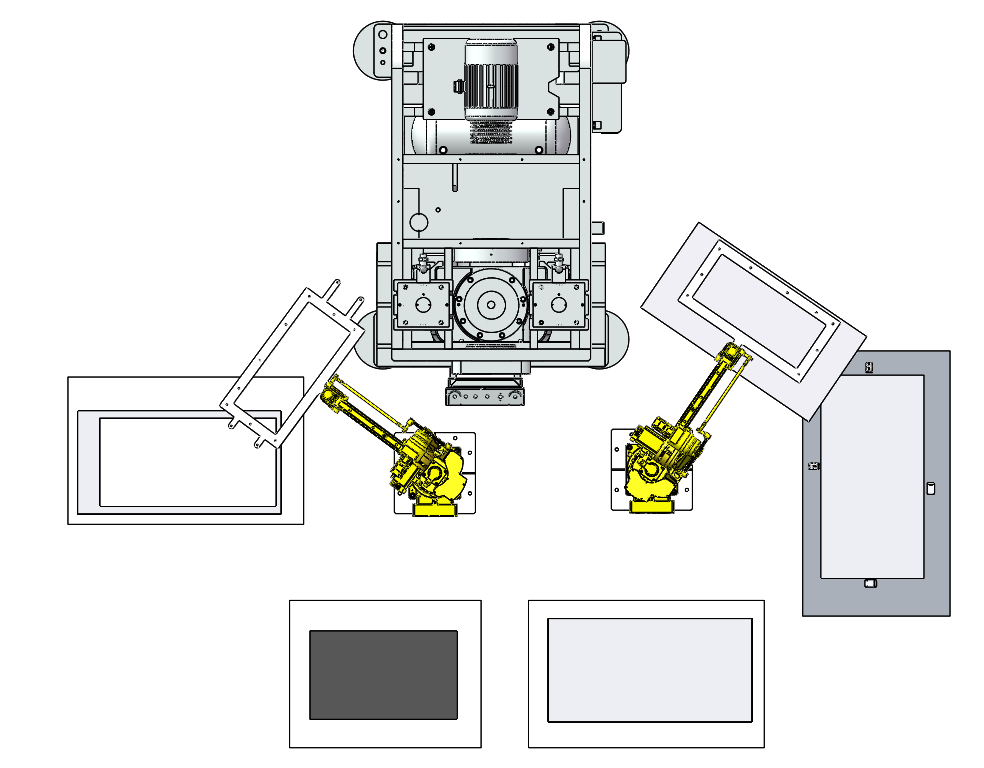

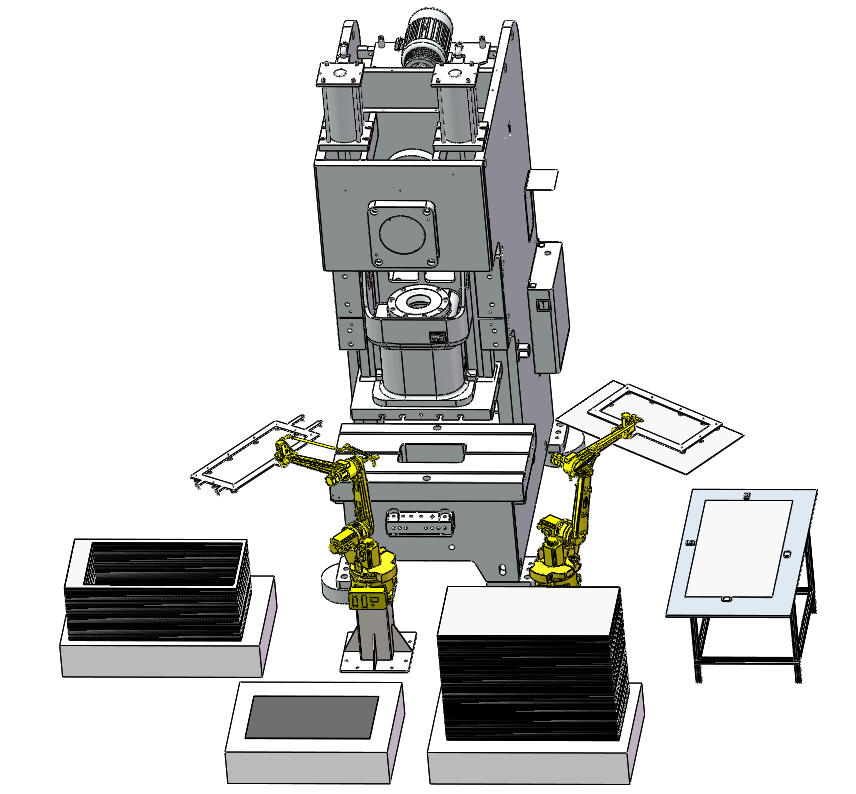

In terms of production line layout and environmental adaptability, LIGENTrobot's stamping loading and unloading solution adopts a modular, three-dimensional layout, scientifically planning the placement of blanks, positioning tables, punch presses, robots, finished products, and scrap materials to achieve efficient space utilization. Simultaneously, the solution is standardized for production environment adaptation, supporting three-phase four-wire 220V±10% power supply and a working air pressure of no less than 0.6Mpa. It can operate stably in typical industrial environments with temperatures ranging from 0-45℃ and humidity from 20%-75%, meeting the production site requirements of most metal processing companies.

The launch of this stamping loading and unloading solution is another significant achievement for LIGENTrobot, demonstrating its deep commitment to industrial automation and focusing on the actual needs of its customers. In the future, LIGENTrobot will continue to prioritize technological innovation, continuously optimize its industrial robot solutions, and expand its application scenarios in more fields such as metal processing, automotive parts, and hardware manufacturing. With higher-quality products and services, LIGENTrobot aims to empower the automation and intelligent transformation of China's manufacturing industry, allowing "Made in China" to shine brighter on the global industrial stage.
