Double station bathtub welding

Solution 1:

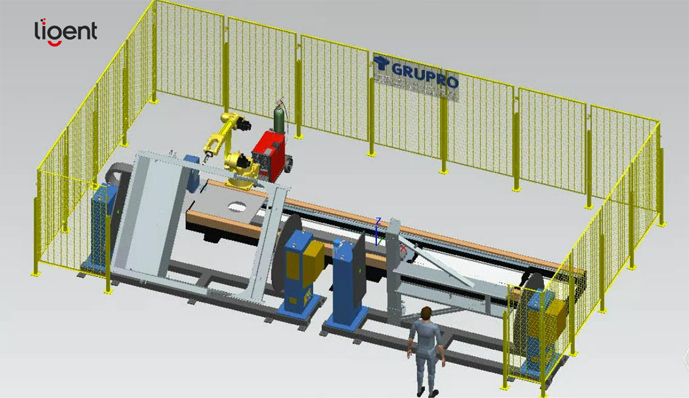

welding robot with 2 SWP ZW 1200 positioning axes and a Track motion.

The idea is to do something like this in the image.

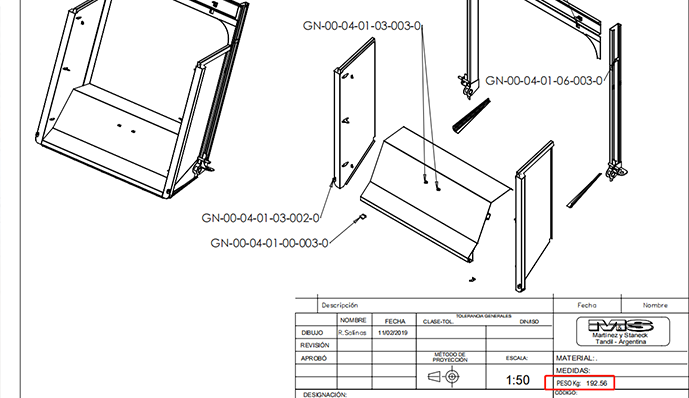

I will attach drawings of parts where the dimensions and weight are. The track ,motion is aprox 5000mm useful career

Welding positioner rotary frame size is ok for the project

Walking rail totally length 6-6.5 m, effective length is 5-5.5m

One of the pieces is 2493mm x 2237mm, the other is 1934mm x 2202mm.

Configuration: welding robot + water-cooled welding torch + base + gun cleaning station + water tank + 6m ground rail

The equipped positioner is 2 sets of SWP ZW 500, and the customized positioner is 3000*2300*110mm

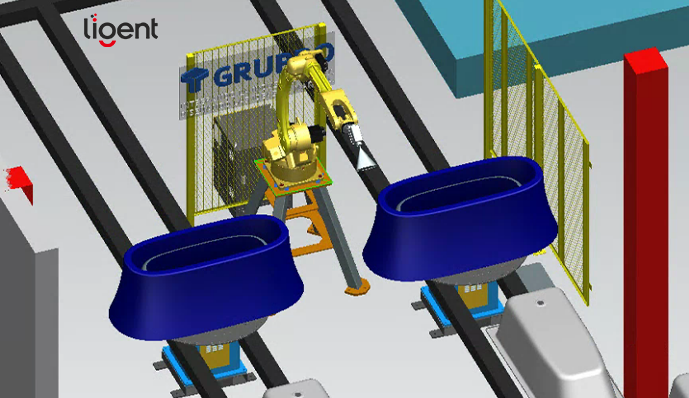

Solution 2: Aquaglass

Confirm the disk diameter of the single-axis platform and whether it needs to be hollow

According to the catalog the diameter can be 1200mm and the shaft does not need a hole

Bathtub weight 50kg

Solution 3: Valben SA

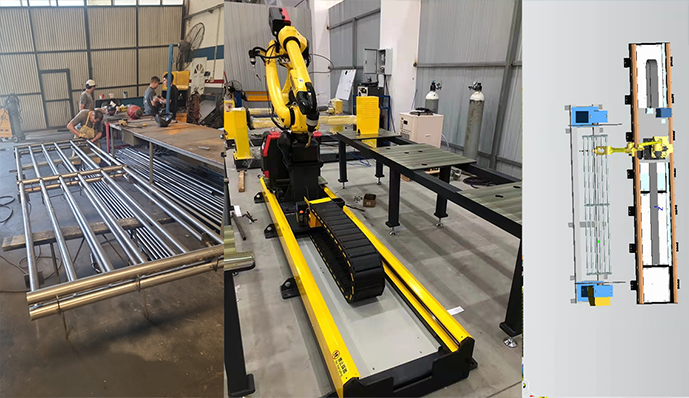

1 TKB2030 welding robot with 1 SWP ZW 1200 positioning axes and a Track motion.

The idea is to do something like this in the image.

The track ,motion is aprox 4000mm useful career.

Walking rail totally length 5-5.5 m, effective length is 4-4.5m Ok

The pieces are gates for pens, the measurements are 3.500 mm x 1.500 mm ,Tube 63 mm and 45mm

Configuration: welding robot, water-cooled welding torch, base, torch cleaning station, water tank, 6-meter ground rail.

The equipped positioner is SWP ZW 500, and the customized positioner is 4200*1200*110mm
